A File Format Uncracked for 20 Years

Splinter Cell (2002) was one of the first games I had on the original Xbox and to this day remains one of my favorite games of all time. It was developed by Ubisoft using Unreal Engine 2 which was licensed from a small indie dev called Epic Games, who continues today to use and license its game engine technology for contemporary indie games such as Fortnite and Halo: Campaign Evolved.

Video games were how I got into programming/hacking and I still enjoy data mining and exploring cut content from the games play. Recently I randomly decided to look online for cut content from Splinter Cell, I was kind of surprised that there isn't really much information on the topic aside from a review copy of the game which contained two levels cut from the Xbox version.

Naturally, I decided to legally backup my personal disc copy of the game and got to digging into the files.

At this point my core objective was to examine the format of the game data and sniff out if there's any indicators of cut content such as textures, models, interesting strings -- whatever. Some nice finds would be debug menus, voice lines, weapon concepts, or levels that are unreachable through normal game progression.

The game's (truncated) file tree looks like this:

.
├── contentimage.xbx
├── dashupdate.xbe
├── default.xbe
├── downloader.xbe
├── dynamicxbox.umd
├── LMaps
│   ├── 000_menu
│   │   ├── common.lin
│   │   └── menu.lin
│   ├── 001_Training
│   │   ├── 0_0_2_Training.bik
│   │   ├── 0_0_2_Training.lin
│   │   ├── 0_0_2_Training_progress.tga
│   │   ├── 0_0_2_Training_start.tga
│   │   ├── 0_0_3_Training.lin
│   │   ├── 0_0_3_Training_complete.tga
│   │   ├── 0_0_3_Training_progress.tga
│   │   ├── common.lin
│   │   └── French
│   │       ├── 0_0_2_Training_progress.tga
│   │       ├── 0_0_2_Training_start.tga
│   │       ├── 0_0_3_Training_complete.tga
│   │       └── 0_0_3_Training_progress.tga

.xbe files are Xbox Executables, .bik are Bink Video files, and .tga are images... but .lin is new to me.

In Splinter Cell the maps have separate parts to them. So in the training mission 001_Training, you likely have 0_0_2_Training.lin for the first part and 0_0_3_Training.lin for the second part which gets loaded when an in-map loading sequence occurs.

I instantly thought that common.lin might contain data common to both of these parts as a way to reduce file size. The Halo games for instance have a shared.map containing assets which are shared across most maps, and load data at a fixed address so that the file can be trivially transmuted from a binary blob to its in-memory data structures.

Examining the common.lin file in a hex editor, a few things become immediately apparent:

┌────────┬─────────────────────────┬─────────────────────────┬────────┬────────┐
│00000000│ 04 00 00 00 0c 00 00 00 ┊ 78 9c 7b d7 97 c2 00 00 │........┊x.{.....│
│00000010│ 06 2e 01 e1 04 00 00 00 ┊ 0c 00 00 00 78 9c 63 60 │........┊....x.c`│
│00000020│ 90 66 00 00 00 3a 00 1c ┊ 04 00 00 00 0c 00 00 00 │.f...:..┊........│
│00000030│ 78 9c 73 48 67 60 00 00 ┊ 02 39 00 a8 04 00 00 00 │x.sHg`..┊.9......│
│00000040│ 0c 00 00 00 78 9c b3 e0 ┊ 65 60 00 00 01 0b 00 46 │....x...┊e`.....F│
└────────┴─────────────────────────┴─────────────────────────┴────────┴────────┘

• Data between 0x0..0x4 and 0x4..0x8 are low-value little-endian 32-bit integers (0x00000004 and 0x0000000C)
• At offset 0x8 is what appears to be a zlib-compressed chunk of data (whenever I see a bunch of x-like characters in the ascii view, or the 79 9c sequence, I immediately think zlib).
• There's another sequence of this at offset 0x14, which happens to be 0xC bytes past the offset of the zlib data (0x8), and another at 0x28.

Presumably the format here is {decompressed_data_len, compressed_data_len, zlib_block[compressed_data_len]} repeated.

So far so good.

I wrote a quick tool to decompress the archive and without a hitch ended up with a 64k file containing 4 u32s prefixing it. Since these 4 are in their own dedicated zlib-compressed chunks I consider to be separate from the main data. I later reverse engineered and identified how they are used:

uncompressed_data_size: 0x648EEE
texture_cache_size (? - later used when calling D3DDevice_CreateTexture2): 0x1B0000
vertex_buffer_size (? - ditto, D3DDevice_CreateVertexBuffer2): 0x6740
index_buffer_size (? - ditto, XGSetIndexBufferHeader): 0xD38

And this is what the main data section's first 0x100 bytes look like:

┌────────┬─────────────────────────┬─────────────────────────┬────────┬────────┐
│00000000│ 5c 58 9e 13 00 a3 c5 e3 ┊ 9f b4 92 9b 13 5c 58 9e │\X......┊.....\X.│
│00000010│ 13 01 00 00 00 04 2a d6 ┊ fe 7e 37 13 4d 61 70 73 │......*.┊.~7.Maps│
│00000020│ 5c 6d 65 6e 75 5c 6d 65 ┊ 6e 75 2e 75 6e 72 00 00 │\menu\me┊nu.unr..│
│00000030│ 00 00 00 ee de 00 00 00 ┊ 00 00 00 16 4d 61 70 73 │........┊....Maps│
│00000040│ 5c 31 5f 31 5f 30 54 62 ┊ 69 6c 69 73 69 2e 75 6e │\1_1_0Tb┊ilisi.un│
│00000050│ 72 00 f0 de 00 00 6d c9 ┊ 17 00 00 00 00 00 16 4d │r.....m.┊.......M│
│00000060│ 61 70 73 5c 31 5f 31 5f ┊ 31 54 62 69 6c 69 73 69 │aps\1_1_┊1Tbilisi│
│00000070│ 2e 75 6e 72 00 60 a8 18 ┊ 00 98 34 21 00 00 00 00 │.unr.`..┊..4!....│
│00000080│ 00 16 4d 61 70 73 5c 31 ┊ 5f 31 5f 32 54 62 69 6c │..Maps\1┊_1_2Tbil│
│00000090│ 69 73 69 2e 75 6e 72 00 ┊ 00 dd 39 00 89 63 19 00 │isi.unr.┊..9..c..│
│000000a0│ 00 00 00 00 18 4d 61 70 ┊ 73 5c 30 5f 30 5f 32 5f │.....Map┊s\0_0_2_│
│000000b0│ 54 72 61 69 6e 69 6e 67 ┊ 2e 75 6e 72 00 90 40 53 │Training┊.unr..@S│
│000000c0│ 00 0f 9f 0c 00 00 00 00 ┊ 00 18 4d 61 70 73 5c 30 │........┊..Maps\0│
│000000d0│ 5f 30 5f 33 5f 54 72 61 ┊ 69 6e 69 6e 67 2e 75 6e │_0_3_Tra┊ining.un│
│000000e0│ 72 00 a0 df 5f 00 48 86 ┊ 11 00 00 00 00 00 1e 4d │r..._.H.┊.......M│
│000000f0│ 61 70 73 5c 31 5f 32 5f ┊ 31 44 65 66 65 6e 73 65 │aps\1_2_┊1Defense│
└────────┴─────────────────────────┴─────────────────────────┴────────┴────────┘

And at what appears to be the end of the file table:

┌────────┬─────────────────────────┬─────────────────────────┬────────┬────────┐
│0002c580│ 79 6e 63 68 5c 69 6e 74 ┊ 5c 55 73 61 53 6f 6c 64 │ynch\int┊\UsaSold│
│0002c590│ 69 65 72 5c 55 53 4f 55 ┊ 4e 43 5f 33 2e 62 69 6e │ier\USOU┊NC_3.bin│
│0002c5a0│ 00 40 8d 9b 13 74 05 00 ┊ 00 00 00 00 00 c1 83 2a │.@...t..┊.......*│
│0002c5b0│ 9e 64 00 11 00 01 00 00 ┊ 00 10 0e 00 00 88 00 00 │.d......┊........│
│0002c5c0│ 00 fa 0f 00 00 f3 7a 11 ┊ 00 4e 00 00 00 3e 78 11 │......z.┊.N...>x.│
│0002c5d0│ 00 de ad f0 0f 42 01 9c ┊ 90 92 8f 96 93 9e 8b 96 │.....B..┊........│
│0002c5e0│ 90 91 9a 9c 97 9a 93 90 ┊ 91 df af bc ba bc b7 ba │........┊........│
│0002c5f0│ b3 b0 b1 df a6 c5 a3 ba ┊ bc b7 ba b3 b0 b1 a3 ac │........┊........│
│0002c600│ a6 ac ab ba b2 a3 df ce ┊ cf d0 cd c9 d0 cf cd df │........┊........│
│0002c610│ cd ce c5 cf cd c5 ce cb ┊ ff 00 00 00 00 00 00 00 │........┊........│
│0002c620│ 00 00 00 00 00 00 00 00 ┊ 00 01 00 00 00 fa 0f 00 │........┊........│
│0002c630│ 00 10 0e 00 00 05 4e 6f ┊ 6e 65 00 10 04 07 04 06 │......No┊ne......│
│0002c640│ 43 6f 6c 6f 72 00 10 04 ┊ 07 04 0d 49 6e 74 65 72 │Color...┊...Inter│
│0002c650│ 6e 61 6c 54 69 6d 65 00 ┊ 10 00 07 00 07 45 6e 67 │nalTime.┊.....Eng│
│0002c660│ 69 6e 65 00 10 00 07 04 ┊ 05 43 6f 72 65 00 10 00 │ine.....┊.Core...│
│0002c670│ 07 04 07 53 79 73 74 65 ┊ 6d 00 10 00 07 04 06 55 │...Syste┊m......U│
└────────┴─────────────────────────┴─────────────────────────┴────────┴────────┘

Just to save some blog space on my trial and error process here, I'm going to drop some of the resources I found which discuss this format:

• https://oldunreal.com/phpBB3/viewtopic.php?t=4885
• https://zenhax.com/viewtopic.php@t=1049.html
• https://reshax.com/topic/1421-ubisoft-unreal-engine-2-open-season-2006-video-game-umd-also-lin-xbox-xbox-360-pc-and-liv-latter-being-exclusive-to-xbox-360/
• https://www.unrealarchive.org/wikis/unreal-wiki/Legacy:UMOD/File_Format.html

The last two posts in particular had structure info that was helpful in figuring out the packed int format (think UTF-8 and its variable-length encoding) and a couple unknown vars.

What I gathered from all of these posts was that over time, nobody's really been able to figure out this format's quirks sufficiently to unpack the data. Everyone seems to think that some kind of VFS is created and the data gets mapped at a specific offset and then read. Which may be true for some titles or consoles, but is not for this one.

My objective has now changed: I now want to reverse engineer this file format and be able to dump individual files from this filesystem. Then I can achieve my core goal of looking for cut content. Then I can maybe play the game.

# tl;dr of the general .lin structure

common.lin has a different layout from the other .lin files that looks roughly like:

/* ==== Standard Data ==== */

// These three, from research + reverse engineering, should not be considered
// as part of the "whole" file
u32             maybe_load_address; // 5C 58 9E 13 (0x139e585c) in common.lin
compressed_int  name_length;        // 0 in common.lin
char            name[name_length];

/* ==== common.lin-specific file header ==== */

u32             magic;              // 0x9fe3c5a3 in little endian, i.e. A3 C5 E3 9F

u32             unk_address;        // B4 92 9B 13, (0x139b92b4) suspiciously similar to maybe_load_address.
                                    // unk_address - load_address gives you the start of the file
                                    // table, relative to the magic?
u32             load_address2;      // 5C 58 9E 13 same as maybe_load_address

u8              unknown[8];         // 01 00 00 00 04 2A D6 FE
compressed_int  file_entry_count;

FileEntry       file_entries[file_entry_count];

struct FileEntry {
    compressed_int  name_len;
    char            name[name_len];
    u32             offset;
    u32             len;
    u32             unk;
}

Then immediately following the FileEntry table are 54 Unreal Engine Package files (identified via their 0x9E2A83C1 magic -- these are also referred to as Linker files) in sequence that presumably map to the files in the file table.

The map-specific files like menu.lin and 0_0_2_Training.lin do not have the file table, but they do have the first 3 fields (and a non-null string like "menu\x0" for the name field) then a sequence of Linker files.

But the problems with parsing this data start with the file table.

# Problems

# File Table

The file table is a very simple format that I'm able to parse with my program:

FileEntry {
    name: Maps\\menu\\menu.unr,
    offset: 0x0,
    len: 0xDEEE,
    unk: 0x0,
},
FileEntry {
    name: Maps\\1_1_0Tbilisi.unr,
    offset: 0xDEF0,
    len: 0x17C96D,
    unk: 0x0,
},
FileEntry {
    name: Maps\\1_1_1Tbilisi.unr,
    offset: 0x18A860,
    len: 0x213498,
    unk: 0x0,
},
FileEntry {
    name: Maps\\1_1_2Tbilisi.unr,
    offset: 0x39DD00,
    len: 0x196389,
    unk: 0x0,
},
FileEntry {
    name: Maps\\0_0_2_Training.unr,
    offset: 0x534090,
    len: 0xC9F0F,
    unk: 0x0,
},
FileEntry {
    name: Maps\\0_0_3_Training.unr,
    offset: 0x5FDFA0,
    len: 0x118648,
    unk: 0x0,
},
FileEntry {
    name: Maps\\1_2_1DefenseMinistry.unr,
    offset: 0x7165F0,
    len: 0x249AF6,
    unk: 0x0,
},
FileEntry {
    name: Maps\\1_2_2DefenseMinistry.unr,
    offset: 0x9600F0,
    len: 0x20F662,
    unk: 0x0,
},
<snip>

At first glance the files seem to be laid out sequentially, aligned to a pointer-width boundary. Except, notice that last file's offset... 0x9600F0. This is way outside of the range of my 0x648EEE-length file, and this file list contains 3,582 files! Not 54 as expected from the count of Unreal Package magics!

The mismatch file count could be explained by not every file in this container being an Unreal Package, but the offsets so far are extremely wrong.

# File Reading

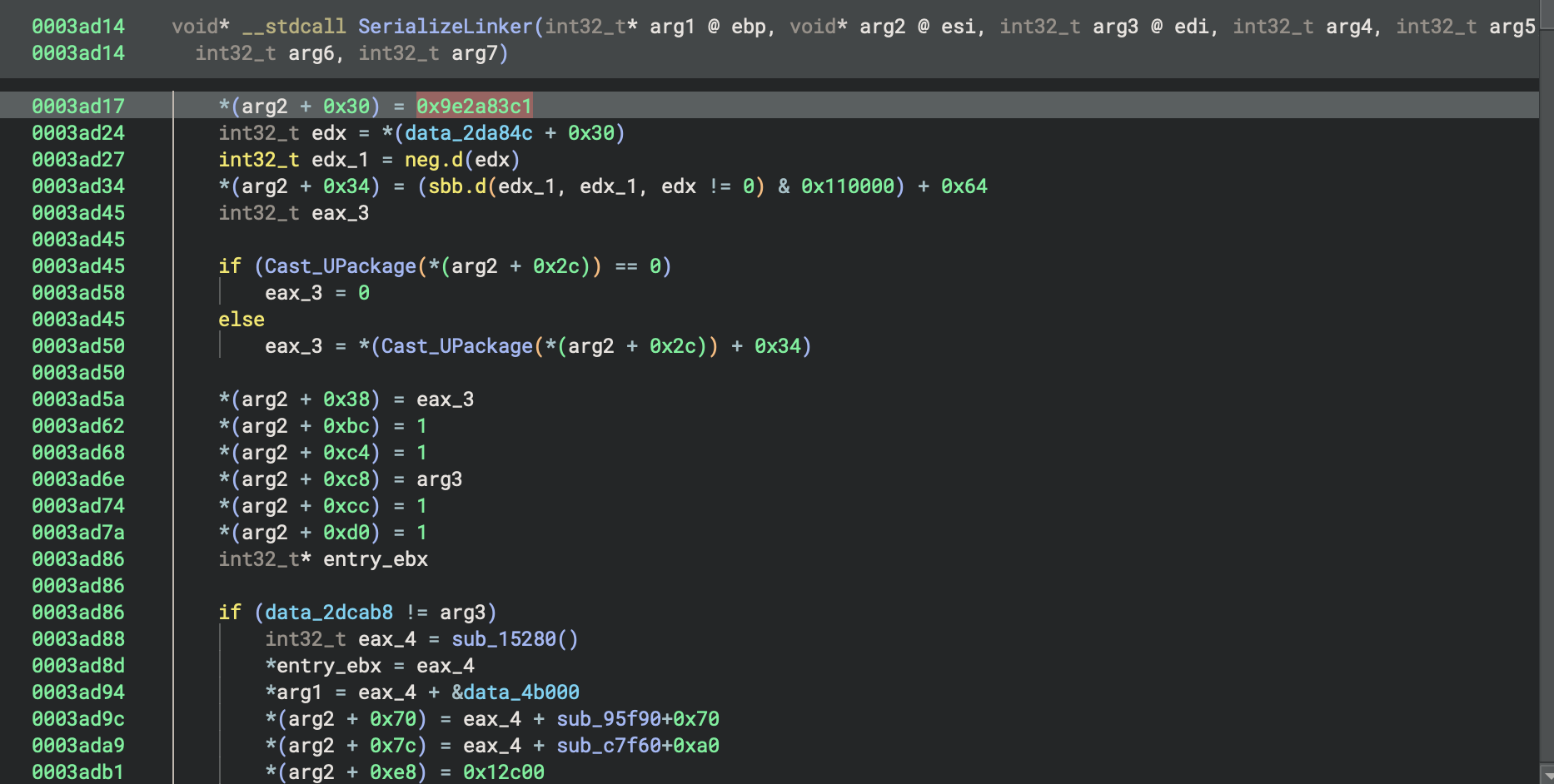

After debugging the game in the Original Xbox emulator xemu, I was able to find the routine which opens the file, as well as the function which reads and decompresses data.

Note: Click images to see in higher res.

This function basically checks the requested read size against how much data it has precached in its decompressed data buffer. It will then copy as much data as it can from its precached buffer to the output buffer, then read the next block of compressed zlib data into its precache buffer if the previous one was exhausted. Repeat this process until the request is satisfied.

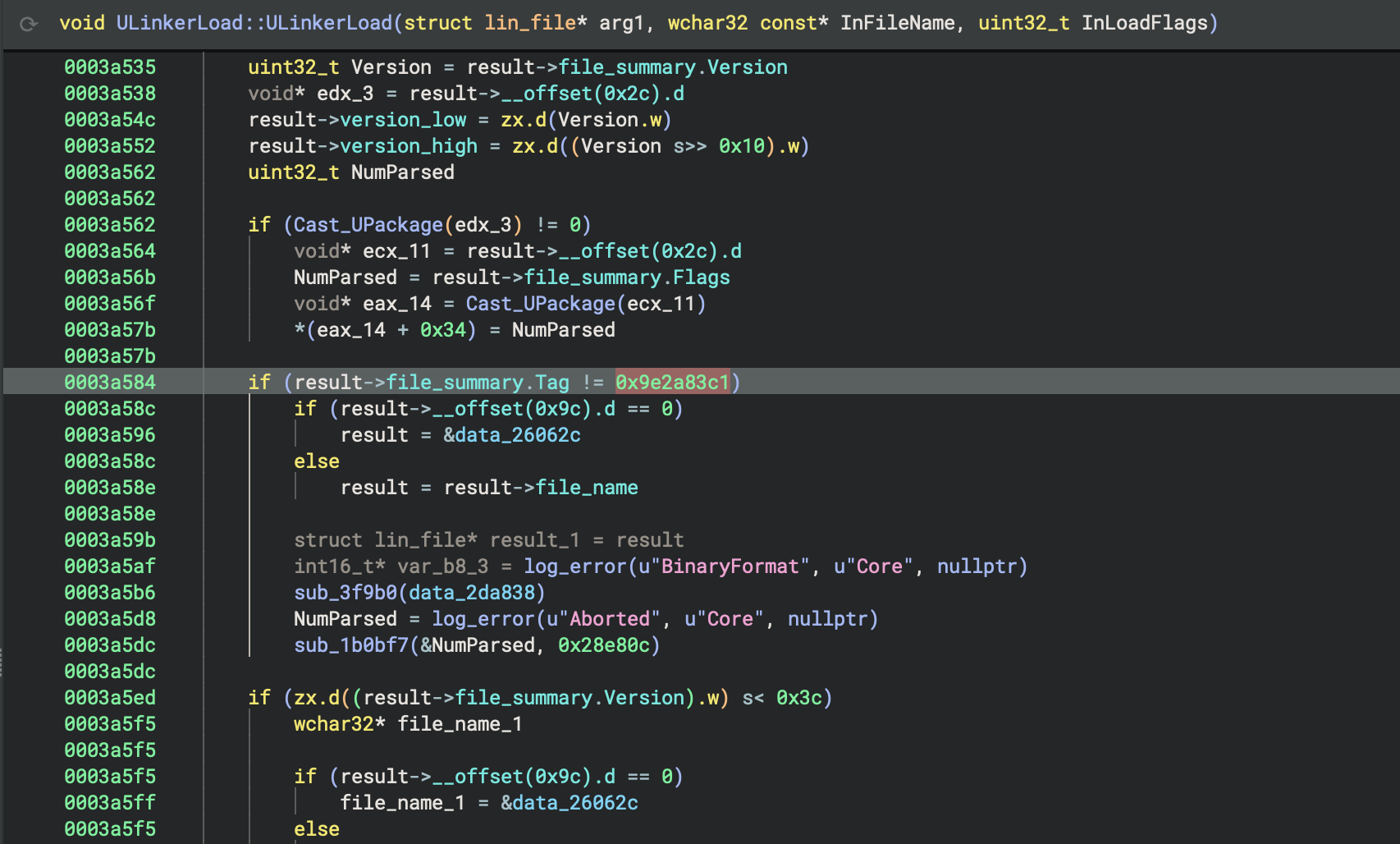

Identifying this function was pretty important for my reverse engineering process. I could now set breakpoints on the code which copies data to the output buffer and see who's calling this function when data is read from offsets I care about.

I stepped through this code, set memory read breakpoints on data I didn't yet understand, and noted something interesting early on!

Those "addresses" from the header (0x139e585c)? Those are actually passed to what I can only guess is a Seek routine which updates the position property of the file reader, then makes an indirect call to another function which literally does nothing.

The entire content of the function is:

retn    4

That's it.

Then the reads just continue from their last position? Since the function is an indirect call, I can only assume that I was looking at some composed C++ object where the outer class object updates its own position in Seek() and then calls its underlying file reader's Seek()... which is a no-op?

After setting memory read breakpoints on it the object's position field, I noticed it's only ever used in their file reader equivalent of FTell(). It doesn't affect where data is actually being read from at all.

The reason for the Seek() being a no-op is likely because the underlying file reader is reading directly from the compressed buffer. Since you cannot reasonably map an uncompressed data offset to a compressed offset the format must be designed to ignore seeks and just read data linearly and not even require seeking.

...the .lin extension makes a lot more sense.

In order to read these files, you have to assume that you cannot seek forward/backward. Easy enough.

# Load Order Matters

We still have a problem that has not been addressed: why does the file table have a large count of files with bad offsets?

I continued to use breakpoints inside of the file read function to trace where interesting bits of data were read and forced a break when the data immediately following the file table was read. Eventually I traced the file read operation back far enough to find this function, StaticLoadObject:

This function calls ResolveName which I was able to log the arguments to via a debugger breakpoint script:

Through the debugger I was able to see that the argument passed to this function is ini:Engine.Engine.GameEngine.

This gets parsed as:

• ini:Engine.Engine <- the INI table to read from
• GameEngine <- the key from the table to read

If I look in UW.ini included with the game, this table is defined as:

[Engine.Engine]
RenderDevice=D3DDrv.D3DRenderDevice
GameRenderDevice=D3DDrv.D3DRenderDevice
AudioDevice=XboxAudio.XboxAudioSubsystem
Console=Engine.Console
DefaultPlayerMenu=UPreview.UPreviewRootWindow
Language=int
GameEngine=Engine.GameEngine
EditorEngine=Editor.EditorEngine
WindowedRenderDevice=D3DDrv.D3DRenderDevice
DefaultGame=Echelon.EchelonGameInfo
DefaultServerGame=WarfareGame.WarfareTeamGame
ViewportManager=XboxDrv.XboxClient
Render=Render.Render
Input=Engine.Input
Canvas=Echelon.ECanvas
Editor3DRenderDevice=D3DDrv.D3DRenderDevice

So the resulting value returned from this function is Engine.GameEngine, which matches what this function resolves.

This is then used to resolve the package Engine and its exported object GameEngine. The game binary looks for the file Engine in its available sources (partial matching strategy), including what's read from the LIN file table, and maps that to System\Engine.u. My tool that reads the file table confirms that this is declared in the LIN file:

FileEntry {
    name: System\\Engine.u,
    offset: 0x13482120,
    len: 0x127DA1,
    unk: 0x0,
},

Except the file start offset + len don't make sense. If I assume the Engine.u file is the first file immediately following the file table, advancing forward by this length appears to land right in the middle of some string?

┌────────┬─────────────────────────┬─────────────────────────┬────────┬────────┐
│00154330│ 09 45 4d 65 73 68 53 46 ┊ 58 00 10 00 07 00 1b 43 │.EMeshSF┊X......C│
│00154340│ 68 61 6e 64 65 72 6c 65 ┊ 72 43 72 79 73 74 61 6c │handerle┊rCrystal│
│00154350│ 50 61 72 74 69 63 75 6c ┊ 65 00 10 00 07 00 12 46 │Particul┊e......F│
└────────┴─────────────────────────┴─────────────────────────┴────────┴────────┘

I'll save some time and just say that I did not identify the wrong file. The lengths just don't matter, and for all intents and purposes are wrong. The reader in the game engine must just read the data in-order using its self-description in its own header?

The Unreal Engine Package/Linker file format has been well documented and does include some sizes in its header. I mapped this to the following Rust struct:

pub struct PackageHeader<'i> {
    pub version: u32,
    pub flags: u32,
    pub name_count: u32,
    pub name_offset: u32,
    pub export_count: u32,
    pub export_offset: u32,
    pub import_count: u32,
    pub import_offset: u32,

    // Note: this is not in the above documented description
    pub unk: u32,
    // Ditto.
    // Not shown: compressed int for length of this data at this position
    pub unknown_data: &'i [u8],

    pub guid_a: u32,
    pub guid_b: u32,
    pub guid_c: u32,
    pub guid_d: u32,
    // Not shown: compressed int for length of this data at this position.
    pub generations: Vec<GenerationInfo>,
}

And of course, the offsets in this format are also unusable (e.g. the name_offset lands you after the start of the name table). But the counts look good:

PackageHeader {
    version: 0x110064,
    flags: 0x1,
    name_count: 0xE10,
    name_offset: 0x88,
    export_count: 0xFFA,
    export_offset: 0x117AF3,
    import_count: 0x4E,
    import_offset: 0x11783E,
    unk: 0xFF0ADDE,
    unknown_data: [
      ...
    ]
    guid_a: 0x0,
    guid_b: 0x0,
    guid_c: 0x0,
    guid_d: 0x0,
    generations: [
        GenerationInfo {
            export_count: 0xFFA,
            name_count: 0xE10,
        },
    ],
}

Now with my tool updated to read these tables -- assuming that they immediately follow this header and each other -- I have imports that look like:

Imports:

Package Core.Core
Import { class_package: 4, class_name: B64, package_index: 0, object_name: 4, object: None }

Class Core.Object
Import { class_package: 4, class_name: B62, package_index: FFFFFFFF, object_name: 13, object: None }

Class Core.Function
Import { class_package: 4, class_name: B62, package_index: FFFFFFFF, object_name: BBD, object: None }

And exports:

Class Actor
(0x0) ObjectExport {
    class_index: 0x0,
    super_index: 0xFFFFFFFE,
    package_index: 0x0,
    object_name: 0x206,
    object_flags: 0x40F0004,
    serial_size: 0x3A8,
    serial_offset: 0xF719,
    data: None,
}

Class Pawn
(0x1) ObjectExport {
    class_index: 0x0,
    super_index: 0x1,
    package_index: 0x0,
    object_name: 0x1A,
    object_flags: 0x40F0004,
    serial_size: 0x281,
    serial_offset: 0xFAC1,
    data: None,
}

...

Class GameEngine
(0xEFB) ObjectExport {
    class_index: 0x0,
    super_index: 0x1C8,
    package_index: 0x0,
    object_name: 0x1D8,
    object_flags: 0x40F0004,
    serial_size: 0x5B,
    serial_offset: 0xC50DB,
    data: None,
}

So the GameEngine object has export index 0xEFB and its data is supposedly located at offset 0xC50DB relative to the package start. You guessed it though, its offset is wrong!

# Export Data

Up to this point we know:

1. You cannot seek in the file reader.
2. The offsets do not map cleanly to the on-disk representation and aren't really used other than for position tracking.
3. The sizes (at least in the file table, and I soon realized in the export data) are incorrect.
4. We know GameEngine is the first object requested by the C++ side of the game and is export index 0xEFB in the Engine package.

Now, to achieve my goal of dumping these files I attempted to simply sum the size of these exports... but trying a combination of that calculated size + any of the {end_of_export_table, start_of_file} offsets landed me in weird places with other Unreal Engine Package files inbetween.

By referencing Unreal-Library to help fill in some of the blanks while tracing the game engine flow the following high-level parsing logic can be observed:

1. An exported object is requested by the game. If it isn't loaded already, the export is lazy loaded.
2. Lazy loading requires resolving the super type's object. For some things this is the Class or Struct base types, for other things this is a different parent class which will eventually have Class as its parent type.
3. Exports have properties which can be of varying size. As you read an export, you deserialize its data as described by its serial_size and serial_offset fields, and however the types exported from the C++ side defines the deserialization routine.

Which visually results in something like the following flow when resolving imports/exports:

To give a concrete example, imagine that GameEngine has the following class hierarchy:

GameEngine -> Engine -> Subsystem -> Class

And since GameEngine is the very first object ever parsed, nothing has been loaded yet. Requesting to load GameEngine from the Engine.u package will trigger the following sequence of events:

1. Engine.u header read/parse (since no package has been created yet)
2. Lookup Engine's GameEngine export. It's not yet parsed, so we need to construct this object by constructing/deserializing it.
3. GameEngine's parent class is Engine.Engine. It has not yet been parsed, so we need to deserialize it before GameEngine.
4. Core.Subsystem is Engine.Engine's parent class. Same thing.
5. Core.u header read/parse (since Core hasn't been loaded yet)
6. Core.Class is Core.Subsystem's parent class (and the base class). Construct this object.
7. Core.Class property deserialization. We can now continue with Core.Subsystem creation.
8. Core.Subsystem property deserialization...
9. Engine.Engine property deserialization..
10. Engine.GameEngine property deserialization...
11. We can now return the fully constructed Engine.GameEngine.

This can result in export data that is interleaved, unfortunately. For the above scenario the data may be on disk like the following diagram. Note: for space/simplicity I've omitted Core.Class, as well as the potential for the properties themselves to trigger deserializing of other exports.

┌─────────────────────────────────────────────────────────────┐
│                                                             │
│                                                             │
│                        File Table                           │
│                                                             │
│                                                             │
│                                                             │
├───────────────────────────┬─────────────────────────────────┤
│Core.u Header              │ Engine.u Header                 │
│                           │                                 │
│                           │                                 │
├────┬────┬─────────────────┴───────┬─────────────────────────┤
│    │▰▰▰▰│▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰│                         │
│    │▰▰▰▰│▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰│          │    │         │
│    │▰▰▰▰│▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰│          │    │         │
│  ▲ │ ▲ ▰│▰▰ ▲ ▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰▰│        ▲ │   ▲│      ▲  │
├──┼─┴─┼──┴───┼─────────────────────┴────────┼─┴───┼┴──────┼──┤
│  │   │      │                              │     │       │  │
│  │   │    ┌─┴──────────────────────────┐   │     │       │  │
│  │   │    │ Core.Subsystem Export Data │   │     │       │  │
│  │   │    └────────────────────────────┘   │     │       │  │
│  │ ┌─┴────────────────────────────────┐    │     │       │  │
│  │ │ Engine (Super Class) Export Data │    │     │       │  │
│  │ └──────────────────────────────────┘    │     │       │  │
│  │                               ┌─────────┴─────┴───────┴──┤
│┌─┴────────────────────────┐      │    GameEngine Export     │
││ GameEngine Object Start  │      │        Properties        │
│└──────────────────────────┘      └──────────────────────────┤
└─────────────────────────────────────────────────────────────┘

And now if you imagine that there's a second object which also extends from Engine loaded after GameEngine, then their common the super class Engine has already been parsed and its information is already in-memory. i.e. if you serialize two objects of the same exact type, the first object might have all the data for its parent classes interleaved with its own export data and the second object only contains its own property data.

Unfortunately, this means that to read these files statically (even for just static recompilation) you need to have full knowledge of how each C++-implemented type is parsed in order to parse all exports and their properties. Additionally, reading one export may trigger resolving of imports in your own Linker object, which in turn trigger deserialization of exports in another Linker object.

# Why??????

I imagine there's a very good reason for packaging data this way. It's best to consider the constraints of the time:

1. The game is being shipped on a physical disc.
2. The Xbox has 64MB of RAM shared between the CPU and GPU, with some portion of that being dedicated to the OS.
3. The CPU wasn't terribly slow for the time, but wasting cycles would have been noticed.

The .lin format mitigates these issues with:

1. Compressing data means you save space on the disc. Note, I'm also conveniently ignoring the fact that common.lin is duplicated in each map's directory and is the same for every map which negates part of this.
2. Streaming data in from the file instead of decompressing the whole thing at once saves on overall memory pressure during the data loading phase.
3. Laying out the file in a byte-for-byte exact read order increases I/O speeds by not having to seek around the physical media, and ensures that you don't need to magic to translate an uncompressed offset to a compressed one in a performant manner.

# Logging Load Order for Static Recompilation

I really, really wanted to avoid doing any runtime dumping that requires playing the game in an emulator or physical console. It doesn't scale well to other games that may have a similar format and is generally less flexible. But doing runtime observations are extremely useful in making sense of the format, so I went ahead and added some logging to get an idea of the file read order from the compressed archive when booting the game:

..\System\Engine.u
..\System\Core.u
..\System\Echelon.u
..\Textures\HUD.utx
..\Sounds\FisherFoley.uax
..\Sounds\CommonMusic.uax
..\System\EchelonEffect.u
..\Textures\ETexSFX.utx
..\Textures\2-1_CIA_tex.utx
..\Textures\generic_shaders.utx
..\Textures\LightGenTex.utx
..\Textures\5_1_PresidentialPalace_tex.utx
..\Textures\1_2_Def_Ministry_tex.utx
..\Textures\EGO_Tex.utx
..\Textures\ETexIngredient.utx
..\Textures\1-1_TBilisi_tex.utx
..\Textures\1_3_CaspianOilRefinery_TEX.utx
..\StaticMeshes\EMeshSFX.usx
..\StaticMeshes\EGO_OBJ.usx
..\Textures\ETexCharacter.utx
..\Textures\4_3_Chinese_Embassy_tex.utx
..\Textures\4_3_0_Chinese_Embassy_tex.utx
..\Textures\4_3_2_Chinese_Embassy_tex.utx
..\Sounds\water.uax
..\Sounds\DestroyableObjet.uax
..\Sounds\FisherVoice.uax
..\Sounds\FisherEquipement.uax
..\Sounds\GunCommon.uax
..\Sounds\Interface.uax
..\Sounds\Electronic.uax
..\Sounds\Dog.uax
..\Sounds\Lambert.uax
..\StaticMeshes\EMeshIngredient.usx
..\StaticMeshes\EMeshCharacter.usx
..\Textures\2_2_1_Kalinatek_tex.utx
..\StaticMeshes\LightGenOBJ.usx
..\Textures\ETexRenderer.utx
..\Sounds\Door.uax
..\Sounds\GenericLife.uax
..\Sounds\Special.uax
..\Sounds\ThrowObject.uax
..\StaticMeshes\Generic_Mesh.usx
..\StaticMeshes\prog\generic_obj.usx
..\Textures\0_0_Training_tex.utx
..\Textures\3_4_Severo_tex.utx
..\System\EchelonIngredient.u
..\Sounds\Gun.uax
..\System\EchelonGameObject.u
..\Animations\ESkelIngredients.ukx
..\Sounds\Metal.uax
..\Animations\ETrk.ukx
..\StaticMeshes\2-1_cia_obj.usx
..\System\EchelonHUD.u
..\Animations\ESam.ukx
..\Maps\menu\menu.unr             // <--- # 55
..\Textures\2_2_Kalinatek_tex.utx
..\StaticMeshes\2_2_Kalinatek_OBJ.usx
..\System\EchelonPattern.u
..\Sounds\S3_4_2Voice.uax
..\Sounds\S3_4_3Voice.uax
..\Sounds\S2_2_2Voice.uax
..\Sounds\S2_1_2Voice.uax
..\Sounds\S5_1_2Voice.uax
..\Sounds\S3_2_2Voice.uax
..\Sounds\S4_2_2Voice.uax
..\Sounds\S4_1_1Voice.uax
..\Sounds\S1_2_1Voice.uax
..\Sounds\S1_1_2Voice.uax
..\Sounds\S0_0_3Voice.uax
..\Sounds\S3_2_1Voice.uax
..\Sounds\S4_2_1Voice.uax
..\Sounds\S1_3_3Voice.uax
..\Sounds\S0_0_2Voice.uax
..\Sounds\S4_3_2Voice.uax
..\Sounds\S1_1_1Voice.uax
..\Sounds\S2_2_1Voice.uax
..\Sounds\S4_3_1Voice.uax
..\Sounds\S5_1_1Voice.uax
..\Sounds\S4_1_2Voice.uax
..\Sounds\S2_1_1Voice.uax
..\Sounds\S1_1_0Voice.uax
..\Sounds\S2_2_3Voice.uax
..\Sounds\S2_1_0Voice.uax
..\Sounds\S1_2_2Voice.uax
..\Sounds\Vehicules.uax
..\Sounds\S1_1_Voice.uax
..\Sounds\S2_1_Voice.uax
..\Sounds\S4_3_0Voice.uax
..\Sounds\S1_3_2Voice.uax
..\Sounds\Machine.uax
..\Sounds\FireSound.uax
..\Sounds\SoundEvent.uax
..\Sounds\S0_0_Voice.uax
..\Sounds\S4_3_Voice.uax
..\Sounds\S4_2_Voice.uax
..\Sounds\S5_1_Voice.uax
..\Sounds\XboxLive.uax
..\System\EchelonCharacter.u
..\Sounds\GearCommon.uax
..\Animations\ENPC.ukx
..\Sounds\Exspetsnaz.uax
..\Sounds\GeorgianSoldier.uax
..\Sounds\RussianMafioso.uax
..\Sounds\GeorgianCop.uax
..\Sounds\EliteForce.uax
..\Sounds\CiaSecurity.uax
..\Sounds\CiaAgentMale.uax
..\Sounds\ChineseSoldier.uax
..\Animations\EFemale.ukx
..\Animations\EDog.ukx
..\Sounds\GeorgianPalaceGuard.uax

import ida_idd, ida_kernwin, ctypes
p=ida_dbg.get_reg_val("ebx")
s=b""
while True:
    c = ida_idd.dbg_read_memory(p,2)
    if not c or c == b"\x00\x00": break
    s += c; p+=2

ida_kernwin.msg("ULinkerLoad: " + s.decode('utf-16-le')+"\n")

In the above file load order I annotated file #55 which is ..\Maps\menu\menu.unr. The common.lin file has 54 Unreal Engine Package files, and #55 happens to be the map which is loading and has its own dedicated .lin file: menu.lin. This hints that the common.lin archive genuinely contains only 54 files and anything else is read from level-specific archives.

I also set a breakpoint in the function which deserializes exports (called Preload) and did some logging of which export is read and when a stream seek occurred:

ULinkerLoad: ..\System\Engine.u
ULinkerLoad: ..\System\Core.u
Export offset: 0x0,0x0,0x0,0x97,0x40f0004,0x4d,0x1b05
Seeking to/from: 0x1b05,0x10883
Export offset: 0xfffffffe,0x0,0x3,0x13d,0x70004,0x1c,0x6531
Seeking to/from: 0x6531,0x1b18
Read complete: 0xfffffffe,0x0,0x3,0x13d,0x70004,0x1c,0x6531
Seeking to/from: 0x1b18,0x654d
Export offset: 0xfffffffe,0x0,0x3,0x13c,0x70004,0x1c,0x6515
Seeking to/from: 0x6515,0x1b18
Read complete: 0xfffffffe,0x0,0x3,0x13c,0x70004,0x1c,0x6515
Seeking to/from: 0x1b18,0x6531
Export offset: 0xfffffffe,0x0,0x3,0x119d,0x70004,0x2c,0x6432
Seeking to/from: 0x6432,0x1b18
Seeking to/from: 0x6451,0x6452
Seeking to/from: 0x6453,0x6454
Seeking to/from: 0x6454,0x6455
Seeking to/from: 0x6455,0x6456
Export offset: 0xfffffffd,0x0,0x2d7,0x477,0x70004,0xb,0x1c35
Seeking to/from: 0x1c35,0x6457
Read complete: 0xfffffffd,0x0,0x2d7,0x477,0x70004,0xb,0x1c35
Seeking to/from: 0x6457,0x1c40
Export offset: 0xfffffffd,0x0,0x2d7,0x46d,0x70004,0xb,0x2736

import ida_dbg, ida_idd, ida_kernwin, ctypes, time

export_addr=ida_dbg.get_reg_val("ebp")

class_index = int.from_bytes(ida_idd.dbg_read_memory(export_addr, 4), "little")
super_index = int.from_bytes(ida_idd.dbg_read_memory(export_addr + 4, 4), "little")
package_index = int.from_bytes(ida_idd.dbg_read_memory(export_addr + 8, 4), "little")
object_name = int.from_bytes(ida_idd.dbg_read_memory(export_addr + 12, 4), "little")
object_flags = int.from_bytes(ida_idd.dbg_read_memory(export_addr + 16, 4), "little")
serial_size = int.from_bytes(ida_idd.dbg_read_memory(export_addr + 20, 4), "little")
serial_offset = int.from_bytes(ida_idd.dbg_read_memory(export_addr + 24, 4), "little")

edx=ida_dbg.get_reg_val("edx")

properties = [class_index, super_index, package_index, object_name, object_flags, serial_size, serial_offset]

ida_kernwin.msg("Export data: " + ",".join(hex(n) for n in properties) +"\n")

There is really no discernable pattern to the loads at all. The file/export load order seems to be just satisfying the dependency graph (exports required for parents/properties of yet-to-be-parsed types) for requested objects from the C++ side of the house.

I think an acceptable compromise to doing this statically would be requiring dumping the file/export load order from the game... but more work is needed to prove the viability of this approach.

I adjusted my program to read my logged lines into a queue of exports to be parsed, using the completed reads (lines starting with Read complete rather than Export offset). This quickly proved to be non-viable with my very barebones tool since I assumed I could just make a read with a length of the Export structure's SerialSize, but I was not reading the correct amount of data before reaching the next Unreal Package.

This was either a bug, or maybe some of the types attempt to seek+read without triggering a Preload(). At any rate, I had now invested a week or longer on the static approach with no data successfully dumped yet.

# Dumping at Runtime

At some point during the above research, I discovered the EnhancedSC project -- a community patch for Splinter Cell 1 on PC which fixes bugs, adds gameplay improvements, and has folks who certailny know the game engine better than me. I joined their Discord and asked if anyone knew about this format and they said that it's been a dead end for anyone who's bothered.

They were quite interested though in any progress achieved as they want to port some content from the Xbox versions of the games to PC. Through this community I got some great help with various theories, ideas, and introduced to tooling like UE-Explorer.

After spending about a week on static recompilation, I didn't want to spend even more time investing in getting things dumped only to discover that the files were wildly different than expected, wouldn't work on PC, or wouldn't work with UE Explorer. I needed to dump something.

The game can obviously read the data fine. The thought came into my head that perhaps I could just dump the data into some crappy format after its read that makes piecing it back together easy.

While reverse engineering/debugging, there was one function that was peculiar to me. I identified the ULinkerLoad function mentioned earlier by searching for the Unreal Package file magic (highlighted below), and found the following function:

As expected, the file magic is checked against what's read from disk. But there's another result for the magic in a different function that is setting some structure's field to the magic:

And what is the purpose of this code? As it turns out, savegames are also Unreal Packages in the same format!

# Patching OG Xbox Binaries

In order to do interesting things, we need to run our own code alongside the game. Debugger scripts are simply too slow and unreliable, so we need something running in the emulator or on a physical device.

Injecting code into a game on Windows or Unix is easy. You can CreateRemoteThread() or DLL hijack on Windows, and on Unix use LD_PRELOAD. On Xbox 360 you can "inject" persistent DLLs. On original Xbox, you have one process with (as far as I know), no DLLs.

This could probably be a blog post on its own since modern information is pretty scarce (RIP XboxHacker.org), but there are at least two tools I know of that can be used to manipulate original Xbox executables.

1. The Python library pyxbe
2. The CLI tool XboxImageExploder

Both of these tools allow you to add a new section to an executable and basically create a code cave that you can use for placing additional code or data. When the system loads the image, it maps that newly added section with the appropriate permissions. You then need to patch some place in the original executable so that your code runs.

Using XboxImageExploder and XePatcher, I was able to write a patch which calls the serialization routine on an object after it gets loaded into memory.

tl;dr of the patch:

1. Define a hook point at the end of theLoadMap() function. This definition will cause XePatcher to write these instructions that jump execution to Hack_LoadMap at the declared file offset.
2. Hack_LoadMap calls Hack_DumpAllLinkers and does the standard epilogue cleanup for LoadMap() which won't be executed since we hijacked execution
3. Hack_DumpAllLinkers iterates a global list of Linker objects and calls Hack_DumpFile with that linker as an argument.
4. Hack_DumpFile ensures that the output directory for the given Linker file is created, then calls the game-provided function which serializes the Linker to that path. For example, the ..\System\Engine.u linker file from the common.lin file will be written to z:\System\Engine.u.

;---------------------------------------------------------
; At the very end of the LoadMap() routine
;---------------------------------------------------------
; file offset, not a VA
dd      73698h
dd      (_load_map_return_end - _load_map_return_start)
_load_map_return_start:

    ; Jump to our detour function
    push    esi
    mov     eax, Hack_LoadMap
    jmp     eax

_load_map_return_end:


_Hack_LoadMapCalled:
    dd      0

_Hack_LoadMap:
    mov     eax, Hack_DumpAllLinkers
    call    eax

    mov     eax, Hack_LoadMapCalled
    mov     dword [eax], 1

    _load_map_restore_registers:
    ; return value that we clobbered in the
    ; hook
    pop     eax

    ; Since we patched in the prologue, we will just
    ; do the register restore ourselves
    pop     edi
    pop     esi
    pop     ebx
    mov     esp, ebp
    pop     ebp
    retn    8

_Hack_DumpAllLinkers:
    push    ebx
    push    esi

    %define g_ObjectLinkers 0033c42ch

    ; Load the linker count
    mov     ebx, [g_ObjectLinkers + 4]
    test    ebx, ebx
    jz      _dump_all_linkers_restore_registers

    ; esi will be our index
    mov     esi, 0

    _dump_all_linkers_linker_loop_start:

    cmp     esi, ebx
    jz      _dump_all_linkers_linker_loop_finish

    ; Iterate the linkers
    mov     eax, [g_ObjectLinkers]
    mov     ecx, esi
    imul    ecx, 4

    add     eax, ecx
    mov     eax, [eax]
    push    eax
    mov     ecx, Hack_DumpFile
    call    ecx
    add     esp, (4 * 1)

    _dump_all_linkers_linker_loop_end:
    inc     esi
    jmp     _dump_all_linkers_linker_loop_start

    _dump_all_linkers_linker_loop_finish:
    _dump_all_linkers_restore_registers:
    pop     esi
    pop     ebx
    ret

_Hack_DumpFile:
    ; Load the argument representing the
    ; object that's being saved
    mov     eax, [esp + 4]

    ; Save registers
    push    edi
    push    esi
    push    ebx

    mov     edi, eax

    _dump_file_do_dump:

    ; Iterate the object's exports and save their flags

    ; ==== NOT USED
    ; Grab the export data pointer
    ;mov     ecx, [edi + 0x88]
    ; Grab the number of exports
    ;mov     ebx, [edi + 0x8C]
    ; ==== NOT USED

    ; Allocate space for the file path
    sub     esp, 0x200


    ; Grab the linker's filename
    mov     eax, [edi + 0x98]

    ; Put the input filename in esi
    mov     esi, eax

    ; If the input filename is empty, jump to the cleanup routine
    ; since this is not a file that's in the packed .lin
    cmp    word [eax], 0
    jz     _Hack_DumpFile_Done

    ;===== DIRECTORY CREATION
    ; The file path is located at the beginning of the stack
    mov     ebx, esp

    ; Set the filename on the stack to `z:`
    ; This has to be a char*, not a wchar_t*
    mov     byte [esp], 'z'
    mov     byte [esp + 1], ':'

    ; This will hold our position in the path we're building
    mov     ebx, 0

    _Hack_DumpFile_File_Directory:

    ; We are looking for a backslash
    ; this is wchar_t `\`
    push    0x005c
    ; Grab the position of the last backslash for the
    ; input file
    push    esi
    mov     eax, appStrchr
    call    eax
    add     esp, (4 * 2)

    ; Not found
    test    eax, eax
    jz      _Hack_DumpFile_Directory_Finish

    ; We found a slash -- check if we've discarded the first
    ; bit of data before the slash (it's expected to start
    ; with "..\" )
    test    ebx, ebx
    jnz     _Hack_DumpFile_File_Directory_Create_Directory

    ; Update ebx to point to the first slash so we can use it
    ; for later copying.
    mov     ebx, eax
    jmp     _hack_dumpfile_directory_end

    _Hack_DumpFile_File_Directory_Create_Directory:

    ; Skip the Z: part for the dest file path
    lea     ecx, [esp + 2]
    push    edx
    push    esi
    ; Start of the linker's file path
    mov     esi, ebx

    ; Copy from ebx to eax
    _hack_dump_file_copy_directory_loop:
    cmp     esi, eax
    je      _hack_dump_file_copy_directory_loop_finish

    mov     dl,   [esi]
    mov     [ecx], dl
    inc     ecx
    ; we're doing some janky wchar_t to char
    ; conversion tricks
    add     esi, 2

    jmp     _hack_dump_file_copy_directory_loop

    _hack_dump_file_copy_directory_loop_finish:
    ; Add null terminator
    mov     byte [ecx], 0

    pop     esi
    pop     edx

    mov     ecx, esp
    ; Make sure we don't clobber eax
    push    eax

    ; Attributes
    push    0x0
    ; Create this directory
    push    ecx
    mov     ecx, CreateDirectory
    call    ecx
    ; cdecl function, it cleans up

    pop     eax

    _hack_dumpfile_directory_end:
    ; Save the position
    lea     esi, [eax + 2]
    jmp     _Hack_DumpFile_File_Directory

    _Hack_DumpFile_Directory_Finish:

    ; Set the file path we want to copy
    mov     esi, ebx

    ;===== FILE CREATION

    ; The file path is located at the beginning of the stack
    mov     ebx, esp

    ; Set the start of VeryLongString to `Z:`
    push    ZDrive
    push    ebx
    mov     eax, wstrcpy
    call    eax
    add     esp, (4 * 2)

    ; Set the copy target to the bytes immediatley
    ; following `z:`, so the result should be
    ; `z:\filename`
    lea     eax, [ebx + 4]

    ; Copy the filename to the path buffer
    push    esi

    ; Set ESI to the full file path for later use
    mov     esi, ebx

    push    eax
    mov     eax, wstrcpy
    call    eax
    add     esp, (4 * 2)

    ; Error
    mov     edx, dword [GlobalError]
    ; InOuter
    mov     eax, [edi + 2Ch]

    ; Pad size?
    push    0xFFFFFFFF
    ; Conform
    push    0x0
    ; Error
    push    edx
    ; Filename
    push    esi
    ; TopLeveLFlags
    push    -1
    ; Base
    push    edi
    ; InOuter
    push    eax

    ; ( UObject* InOuter,
    ;   UObject* Base,
    ;   DWORD TopLevelFlags,
    ;   const TCHAR* Filename,
    ;   FOutputDevice* Error=GError,
    ;   ULinkerLoad* Conform=NULL );
    mov     eax, UObject_SavePackage
    call    eax
    add     esp, (7 * 4)


    _Hack_DumpFile_Done:

    ; Restore the stack to clean up the file
    ; path
    add     esp, 0x200

    ; Restore the export flags

    _dump_file_restore_registers:

    ; Restore saved registers
    pop     ebx
    pop     esi
    pop     edi

    ret

# Results

We can now read the output files in UE Explorer, and even load the Xbox main menu and the in-engine cinematic from the first level to be run on PC... albeit with some bugged lighting and textures. Anything past that first level cinematic, including the interactive bit of the level itself, has failed to load.

The above patch, dumping at LoadMap() end, resulted in the most reliable file dumping out of my many experiments. At the end of this function it seems nearly all data is read and ready to go, but there are a couple of objects read after this point. Dumping after all object reads are complete though actually seems to make things worse -- maybe because some object properties have changed in-memory from their default values?

First level cinematic:

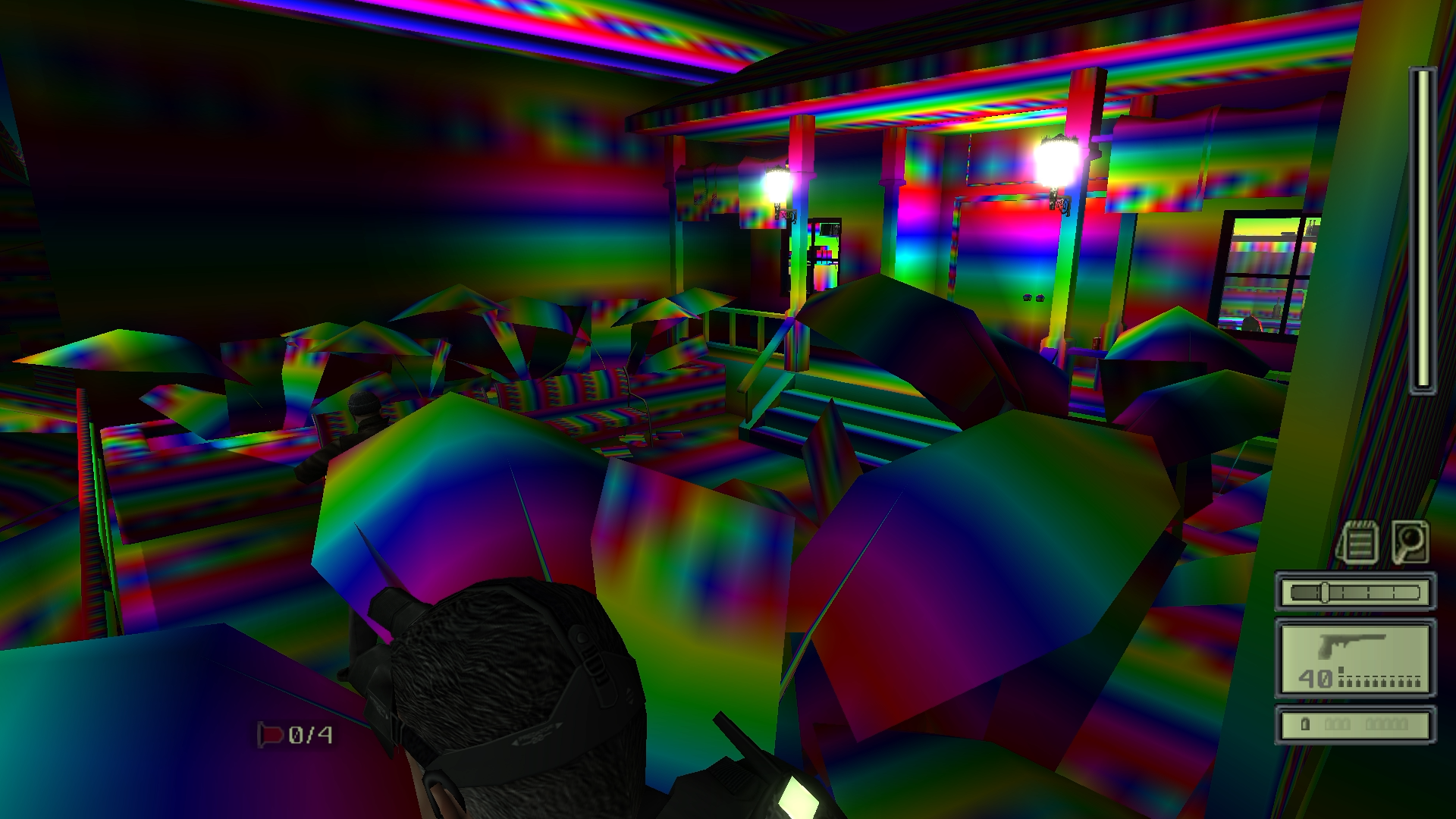

Swapping only a single texture:

In fact, the textures are just straight up incomplete data which as of right now I think is a round-tripping issue where the texture explicitly prevents itself from being re-serialized.

And there is are two major caveats to this approach:

1. Since exports are lazy loaded, you can only dump what's used in a level. The main menu uses some functionality from Engine and Core, but not all of it. So if I load the main menu map and dump all the linkers when it's finished loading, I will only have a partial representation of Engine and Core.

2. Anything unreferenced or unused which might by happenstance be in the archive cannot be easily recovered since you don't know where its data starts. e.g. the main menu has some brushes which are in the export table but appear to be unused, so nothing ever triggers their appropriate load.

# Next Steps

While we've had some small wins and I feel I've accomplished a lot, I'm not going to be satisfied until I can cleanly dump anything I want from the game. A major milestone would be to get the training mission on Xbox completely working on PC.

I think this format can still be read statically, but I'm hoping for now that someone from the community can use the work presented in this blog post to get it working in Unreal-Library. This is a much more general approach which only requires a single debugger breakpoint script to dump export loads on a per-game basis rather than a binary patch. If this interests you, check out the issue I filed in the project repo.

# Thanks

• Grimdoomer for getting me up to speed with writing OG Xbox patches and for listening to my rants about this format.
• To the EnhancedSC for helping inspect my dumped files and for investing in my success.
• EliotVU for developing the great UE Explorer and UELib.
• The folks who documented their own findings on this format before me. Every little bit of information helps.
